Seiko design, fine workmanship, elegant and dignified.
Using Cree, Lumileds original factory LED chip + international famous brand drive power supply, long life, low light decline.
Multi-channel convection heat dissipation technology, high heat dissipation module design, heat dissipation fast and even.
Independent electric box and module, the driver adopts waterproof and fast interface plug, can be replaced on site, easy to maintain.
Patented double lightning protection design to ensure the normal use of lamps in inclement weather conditions.
Elevation adjustable installation design, multi-diameter lamp arm installation interface, adapted to various road modifications.
Return
Using Cree, Lumileds original factory LED chip + international famous brand drive power supply, long life, low light decline.
Multi-channel convection heat dissipation technology, high heat dissipation module design, heat dissipation fast and even.
Independent electric box and module, the driver adopts waterproof and fast interface plug, can be replaced on site, easy to maintain.
Patented double lightning protection design to ensure the normal use of lamps in inclement weather conditions.
Elevation adjustable installation design, multi-diameter lamp arm installation interface, adapted to various road modifications.
 | 技術規格書 | Doc.No.： | |||||||||||||||||||

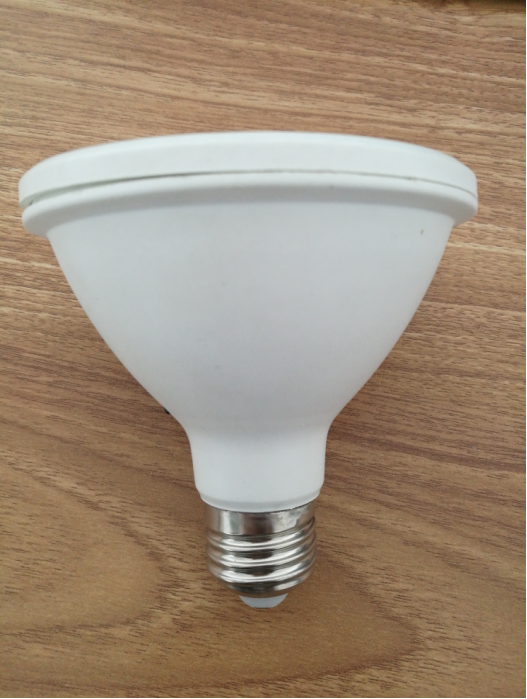

| Par38燈/11W/3000K/E27/100-250V/塑包鋁/12SMD/PF0.9/IC/950LM/RA80/過EMC/過巴西認證/LUZ | 編制日期 | 2017-4-1 | |||||||||||||||||||
| JK | 1/2頁(Page) | ||||||||||||||||||||
| 成品編碼 | 99.205.1.2.102 99.205.1.6.102 | ||||||||||||||||||||
| 1 | 基本規格 General specifications | ||||||||||||||||||||
| 單位 | 指 標 Value | ||||||||||||||||||||
| 1> | 產品類型 Product type | / | Par38-15W | ||||||||||||||||||
| 2> | 發光角度 Beam angle | degree | 38 | ||||||||||||||||||
| 3> | 安全標準 Safety assurance | / | GB 24906 | ||||||||||||||||||
| 4> | 調光非調光 Dimmable or non_dimmable | / | 非調光 | ||||||||||||||||||
| 5> | 燈頭材料 Base Material | E27 | / | 鋁鍍鎳 | |||||||||||||||||
| 6> | 泡殼材料 Bubble Material | / | PC+鋁 | ||||||||||||||||||
| 2 | 光電參數 Performance Parameters | Unit | 最小Min | 額定Spec | 最大Max | 測試條件(Test Condition) | |||||||||||||||
| 1> | 電源電壓 Supply Voltage | Vrms | 100 | 220 | 250 | 額定電壓下，25±2℃，燈頭向上，點亮1小時穩定后測試 rated voltage,25±2℃, Base Up test after 0.5 hours light-on and stable (燈珠焊盤溫度是96.1度）1000H<15%光蓑 | |||||||||||||||
| 2> | 電源頻率 Input Frequency | Hz | 50 | 50 | 50 | ||||||||||||||||
| 3> | 輸入電流 Input Current | Arms | 0.044 | 0.054 | 0.088 | ||||||||||||||||
| 4> | 輸入功率 Input Power | W | 9.9 | 11 | 12.100 | ||||||||||||||||
| 5> | 功率因數 Power Factor | λ | >0.7 | >0.7 | / | ||||||||||||||||
| 6> | 工作頻率 Ballast Operation Frequency | kHz | 65kHz-80kHz | ||||||||||||||||||
| 7> | 光通量 luminous Flux | 2700K | lm | / | / | / | |||||||||||||||
| 3000K | lm | 855 | 950 | / | |||||||||||||||||
| 4000k | lm | 900 | 1000 | / | |||||||||||||||||
| 6500k | lm | 900 | 1000 | / | |||||||||||||||||
| 8> | 顯色指數 Colour rendering index | Ra | ＞80 | / | / | ||||||||||||||||
| 9> | 平均壽命 Lifetime ( 70% failure ) | hrs | 15000 | / | / | ||||||||||||||||
| 10> | 電磁兼容 | EMC | ok | ||||||||||||||||||
| 3 | 產品外形尺寸 Product figure and dimension | 單位 | 指 標 Value | ||||||||||||||||||
| Unit | 最小Min | 額定Spec | 最大Max | 備注 | |||||||||||||||||
| 1> | 燈總長Overall Lamp Length(A) | E27 Base | mm | 94.6 | 95 | 95.4 | |||||||||||||||
| 2> | 燈總寬Overall Lamp Wide(B) | / | mm | 94.8 | 95 | 95.2 | |||||||||||||||
| 3> | 泡殼外徑 Overall Housing Diameter(C) | mm | 94.8 | 95 | 95.2 | ||||||||||||||||
 | |||||||||||||||||||||
| 版本號 | 修改日期 | 修改理由 | 設計 | 審核 | 會簽 | 審批 | |||||||||||||||
| 1.0 | 2017-4-1 | 初版 | |||||||||||||||||||
